| 브랜드 이름: | PRECISION |
| 모델 번호: | VTS-10 |
| MOQ: | 1 |
| 가격: | $6000 |
| 지불 조건: | T/T |
| 공급 능력: | 100/month |

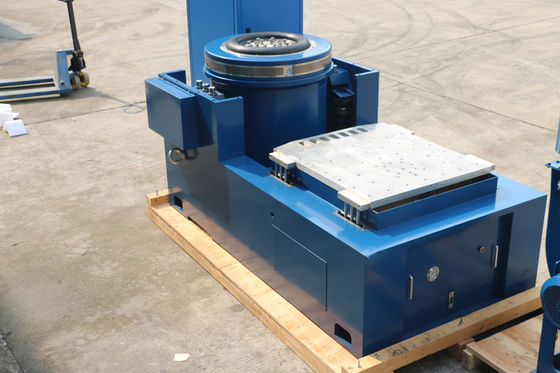

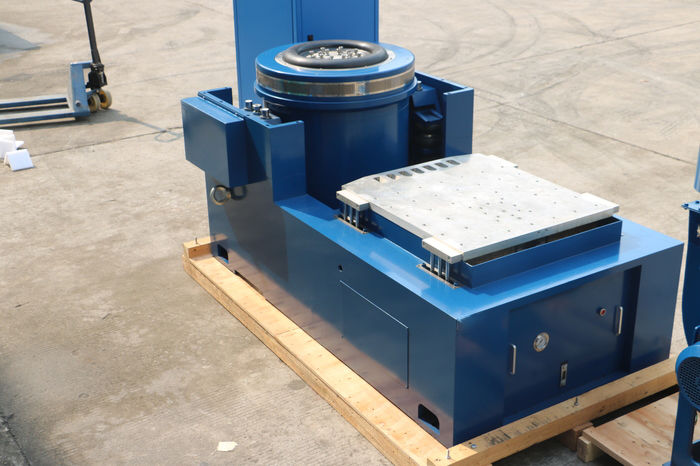

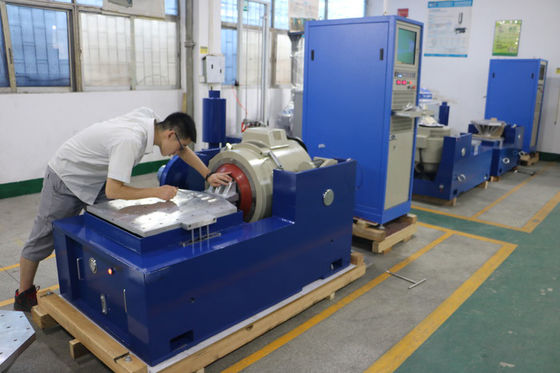

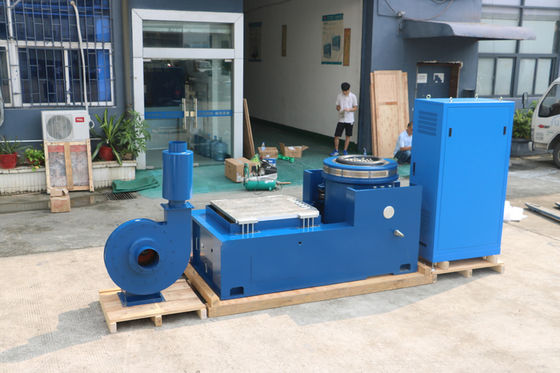

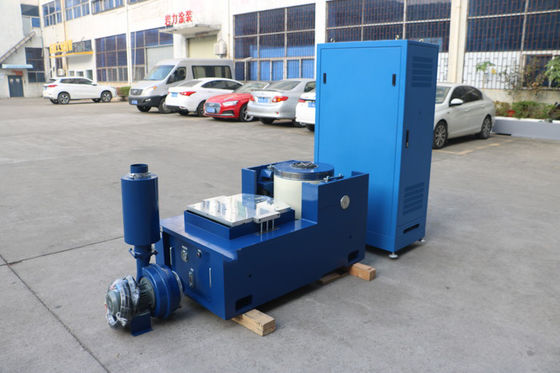

Our High-Frequency Sine & Random Vibration Testing System is specifically engineered for the rigorous demands of MIL-STD-810. This advanced system allows you to subject your products to precise, high-frequency vibrations—both sine and random—that are critical for simulating the stresses encountered by sensitive components in military and aerospace applications. By accurately replicating the high-frequency dynamics of jet engines, vehicle engine noise, and other operational environments, our system is indispensable for identifying latent defects and ensuring the unwavering reliability of your products in the field.
MIL-STD-810 Compliance: Fully configured to execute the specific high-frequency vibration profiles outlined in key military standards, such as MIL-STD-810H, Method 514.8 (Vibration), and others that mandate high-frequency testing.
Extended High-Frequency Range: Capable of generating vibrations across a broad spectrum of high frequencies, typically up to 5,000 Hz or more, to accurately pinpoint resonances and fatigue issues in materials and components.
Dual-Mode Vibration Capability: Seamlessly switches between high-precision sine vibration for resonance searches and fatigue analysis, and complex random vibration for simulating real-world, broadband operational environments.
Precision Electrodynamic Shaker: Utilizes advanced electrodynamic technology for accurate, repeatable, and controlled generation of high-frequency waveforms with exceptional stability and minimal distortion.
Advanced Digital Control System: Features a powerful, intuitive controller with specialized software for programming and executing demanding MIL-STD test sequences, including resonance searches, dwell tests, and broadband random profiles.
Comprehensive Data Acquisition: Continuously monitors and records critical test parameters (acceleration, displacement, Power Spectral Density (PSD), etc.), providing detailed insights and auditable data required for MIL-STD compliance reports.
Robust & Durable Construction: Built with industrial-grade components and a reinforced structure for continuous operation and long-term reliability in demanding test environments.
Customizable Test Fixtures: Our engineering team designs and manufactures application-specific fixtures that are optimized for high-frequency testing and secure mounting of diverse military and aerospace products.
Aerospace & Defense Systems: Qualification of avionics, sensors, optical systems, and ruggedized electronics for performance in high-frequency flight environments, such as those near jet engines or turboprops.
Military Vehicle Components: Durability testing of components, sub-assemblies, and electronics exposed to high-frequency engine noise and drivetrain vibrations.
Ruggedized Electronics: Assessing the reliability of sensitive electronic assemblies, PCBs, and connectors for soldier-borne or field equipment.
Structural Dynamics: Identifying high-frequency modal characteristics and fatigue points in composite materials and lightweight structures.
Failure Analysis & R&D: Uncovering subtle design flaws and manufacturing defects that are only detectable under specific high-frequency conditions.
Regulatory Compliance & Certification: Essential for achieving necessary military certifications and clearances for market entry and deployment.
Guaranteed MIL-STD Compliance: Ensures your products meet the highest military standards for high-frequency vibration, facilitating critical certifications and deployments.
Uncovers Hidden Defects: Reveals fatigue, micro-cracks, and connection issues that are often only detectable at higher frequencies, preventing costly field failures.
Enhanced Product Reliability: Ensures components and systems perform robustly in high-frequency operational environments, contributing to mission readiness.
Accelerated Qualification: Streamlines the complex and lengthy MIL-STD testing process, significantly speeding up market entry for defense-related products.
Comprehensive Data Insights: Generates precise, repeatable data crucial for design optimization, material selection, and robust validation reports.
Technical Specifications:
| Rated Sine/ Random/ Shock Force | 1,100 kgf/1.100 kgf/2200 kgf | Armature Mass | 13 kg |
| Frequency Range | 5-3500 Hz | Inserts Size (Standard) | M10 |
| Max./Continuous Displacement p-p | 51 mm/51 mm | Load Attachment Points (Standard) | 25 |
| Max. Velocity | 2.0 m/s | Natural Frequency-Thrust Axis | <3Hz |
| Max.Sine/ Random Acceleration | 85/60g | Max. Vertical Load Support | 300 kg |
| Armature Diameter | 335 mm | Stray field @152 mm above table | ≤lmT (10 gauss) |
| Fundamental Resonance Frequency | 3,000 Hz (nom) ±5% | Dimension LxWxH | 940 mmx715 mm* 780 mm |
| Allowable Armature Overturning Moment | 300 Nm | Weight (Uncrated) | 1.000 kg |
Ready to push the boundaries of product reliability and ensure your components meet the rigorous demands of MIL-STD high-frequency testing? Contact our experts today to discuss your requirements for a High-Frequency Sine & Random Vibration Testing System.
